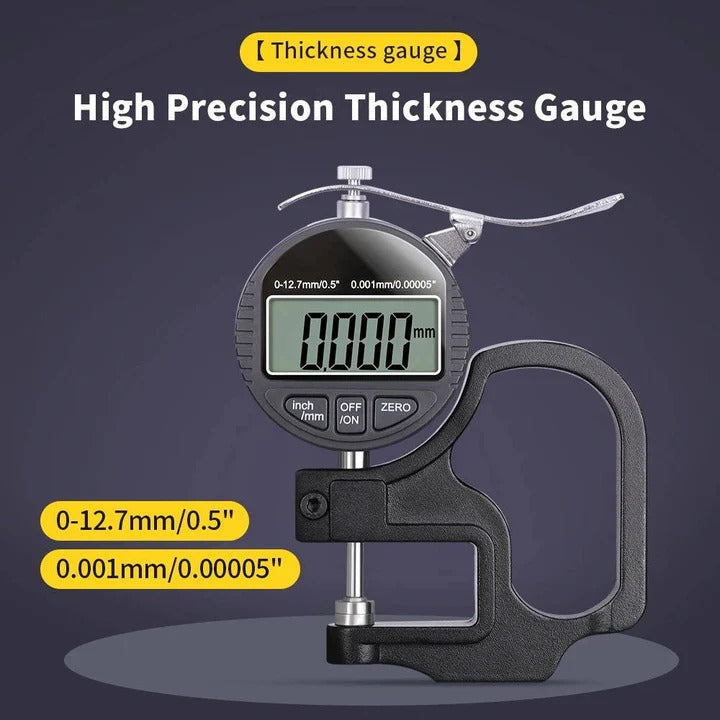

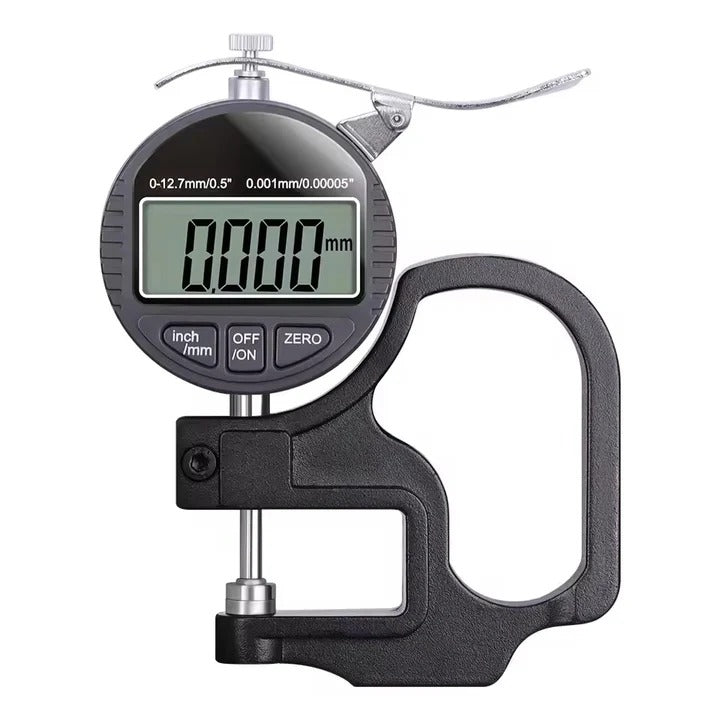

Digital Thickness Gauge with LCD Screen and Metric Imperial Reading

Thickness Gauge For Paper, Fabric, and Metal With 3N Lever Pressure

It misses small thickness differences that throw off your measurements. You need readings down to fractions of a millimeter and eyeballing that never works. Use it on paper, cloth, or metal in a workshop, lab, or toolbox setup.

This slides your material between the probe and base and presses the lever down. The large LCD shows the thickness reading down to 0.001mm or 0.00005 inch. Hit zero to reset between readings or switch between metric and imperial.

The range runs from 0 to 12.7mm, covering materials up to 0.5 inch thick. Hard alloy steel makes up the frame and measuring surfaces for durability through use. The lever applies 3N of pressure consistently across each reading.

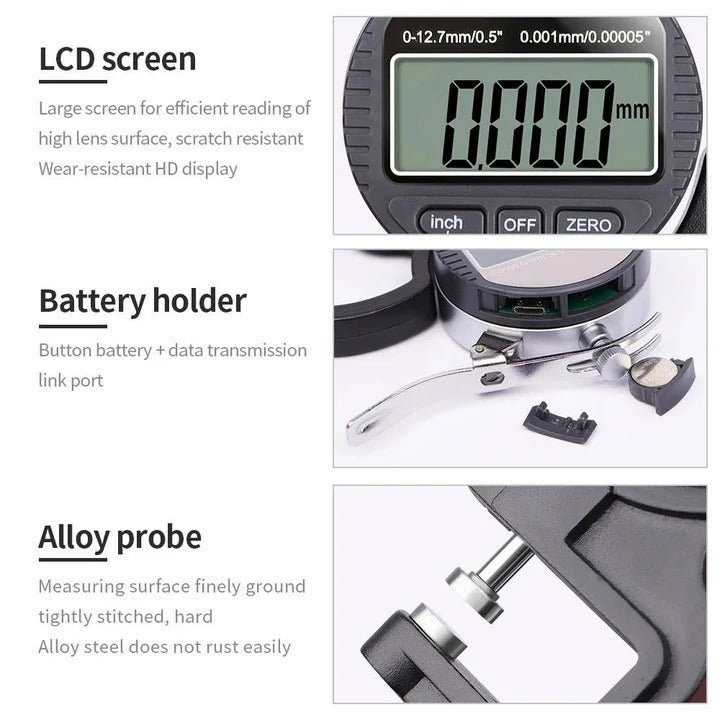

A tooth clamp knob locks things steady so readings stay consistent on delicate materials. The compact build fits a toolbox or bag for use wherever the job is. A button battery powers it with a data port onboard.

• 0.001MM RESOLUTION:  Designed to help reads thickness down to 0.001mm or 0.00005 inch so small material differences can be shown in the reading.

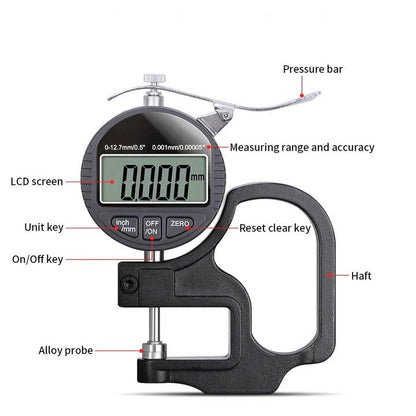

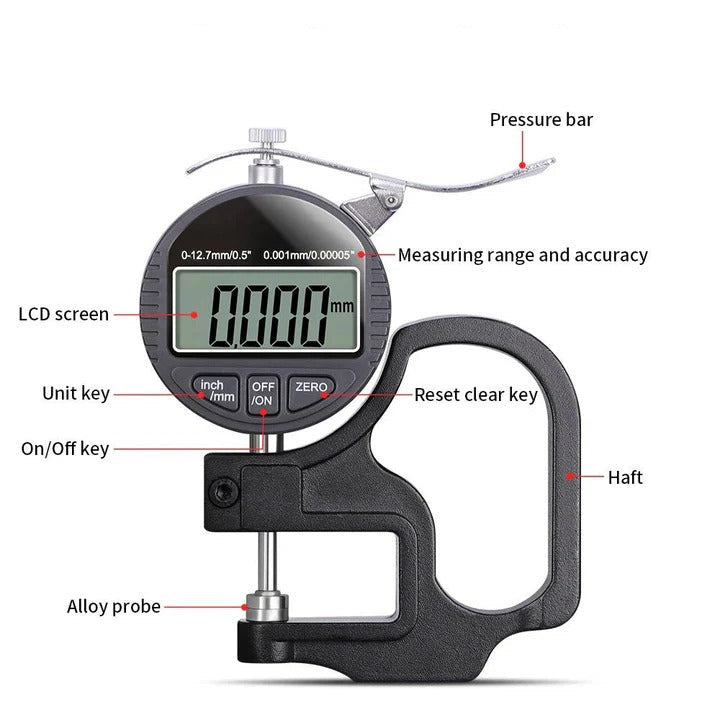

• PROBE AND LEVER OPERATION: Slide material between the probe and base, press the lever down, and the LCD shows the result.


• 0 TO 12.7MM RANGE: Covers a range from near-zero to 12.7mm for thin paper, fabric, and materials up to 0.5 inch thick.


• ALLOY STEEL BUILD: Frame and measuring surfaces are made from hard alloy steel for durability through repeated daily use.


• 3N CONSISTENT PRESSURE: Lever is designed to apply 3N of pressure across each reading for controlled and repeatable contact.


• TOOTH CLAMP KNOB: Clamp knob help locks the position steady during measurement so delicate materials stay in place.


• ZERO RESET AND UNIT SWITCH: One button resets to zero between readings and another switches between millimeter and inch output.


• COMPACT BATTERY-POWERED BUILD: Runs off a button battery, includes a data port, and fits into a toolbox or bag for on-site use.

Product Specifications

• Type: Thickness Gauge

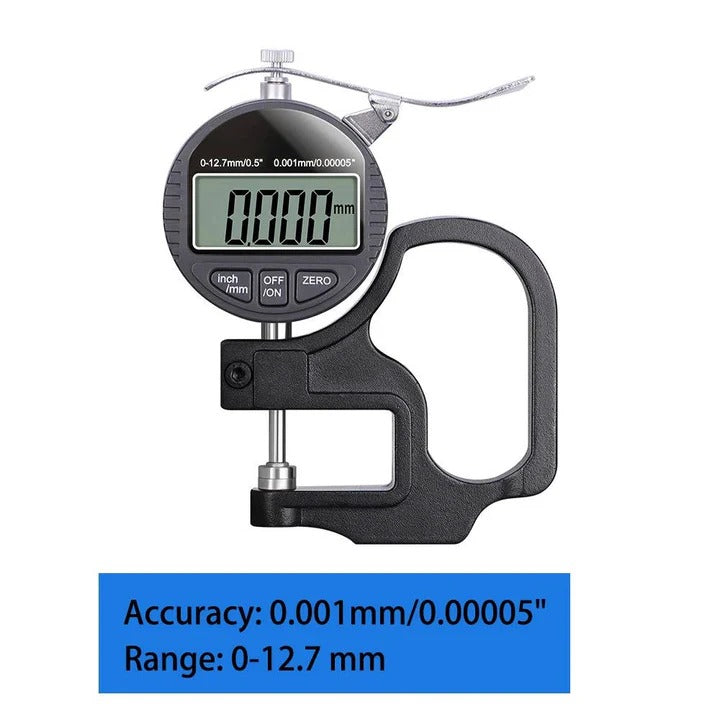

• Precision: 0.001mm / 0.00005 Inch
• Range: 0 to 12.7mm (0 to 0.5 Inch)
• Display: Large LCD
• Material: Hard Alloy Steel
• Pressure: 3N
• Zero Reset: Yes
• Measurements: Metric and Imperial
• Power: Button Battery

What's Included

• 1 x Thickness Gauge

Frequently Asked Questions

What types of materials can this gauge measure?
The gauge can be used on paper, fabric, and metal within the 0 to 12.7mm measurement range. It is suitable for checking thin sheet materials as well as materials up to 0.5 inch thick.

How do I switch between millimeter and inch readings?
A dedicated button on the unit switches the display output between metric and imperial at any point during use, so you can move between millimeter and inch readings without resetting or restarting the gauge between measurements.

What does the tooth clamp knob do during a measurement?
The clamp knob help locks the probe position steady once the material is in place, which keeps delicate or thin materials from shifting during the reading.
